Description

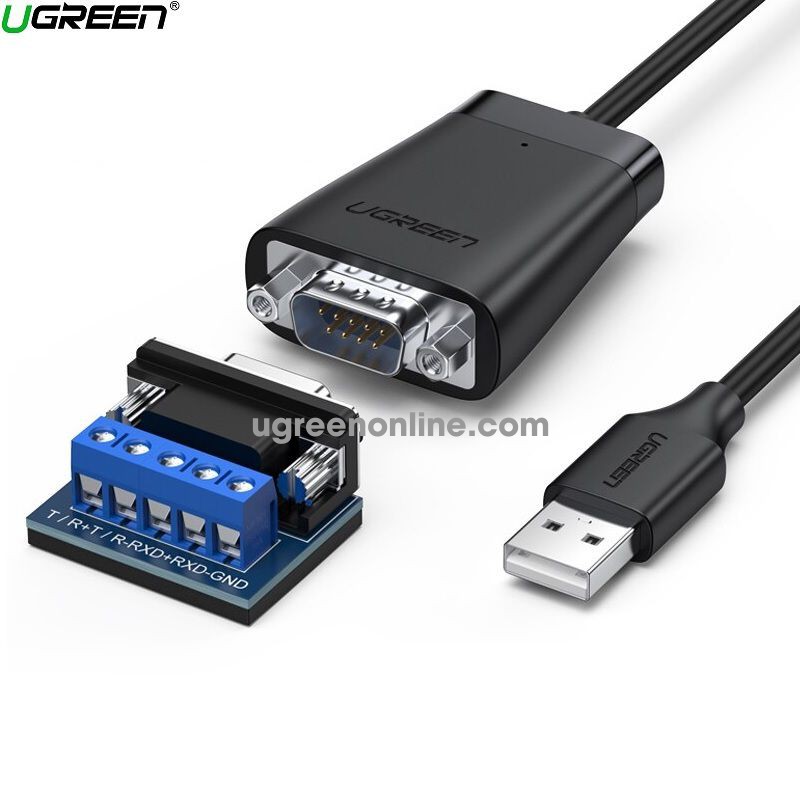

Ugreen USB TO RS-422/RS485 adapter Cable 1.5m, Chipset: FIDI-FT232R+ZT485,

GENERAL INFORMATION

1. Color : Black

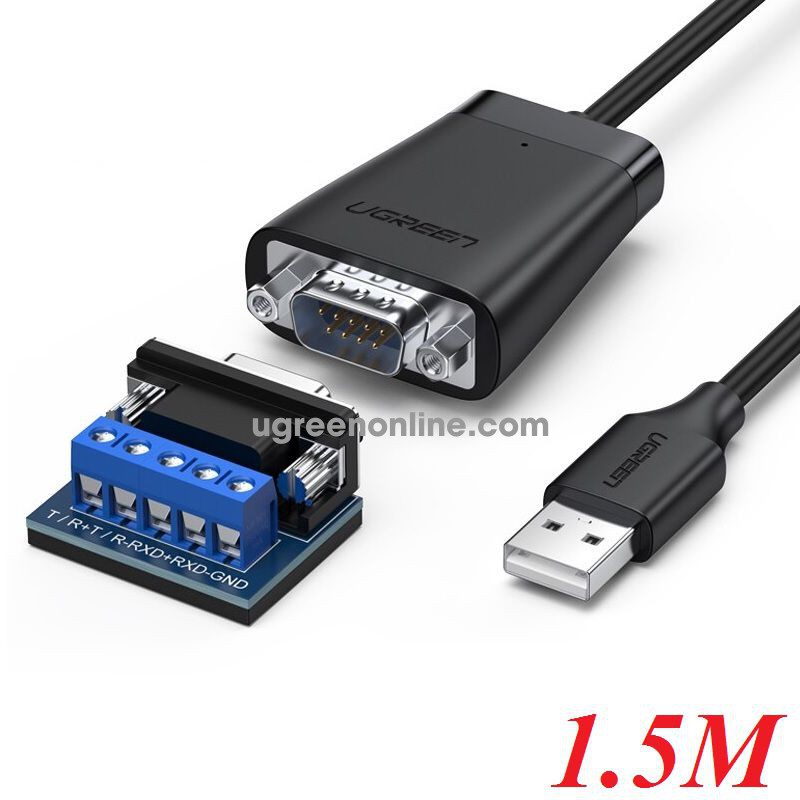

2. Cable length : 1.5M
3. Input : USB 2.0-A Male
4. Output : RS-422 and RS-485 , DB9 Male, using with terminals
5. USB Signal : VCC DATA+ DATA+ GND
6 RS-422 Signal : TXD+ TXD- RXD+ RXD- GND
7. RS-485 Signal : T/R+ T/R- GND
8. Working Modes : Asynchronous; Point-to-Point or Point-to-Multipo
9. Load Capacity : Support Point-to-Multipoint
10. Surge protection : 600W
11. Baud Rate : 300-921600bps, automatically detect serial sign
12. Transmission Distance : 1200m(9600bps)
13. Support : Windows/Mac OS/Linux system
14. 20 x 20 x 5
15. 245

DETAILED DESCRIPTION

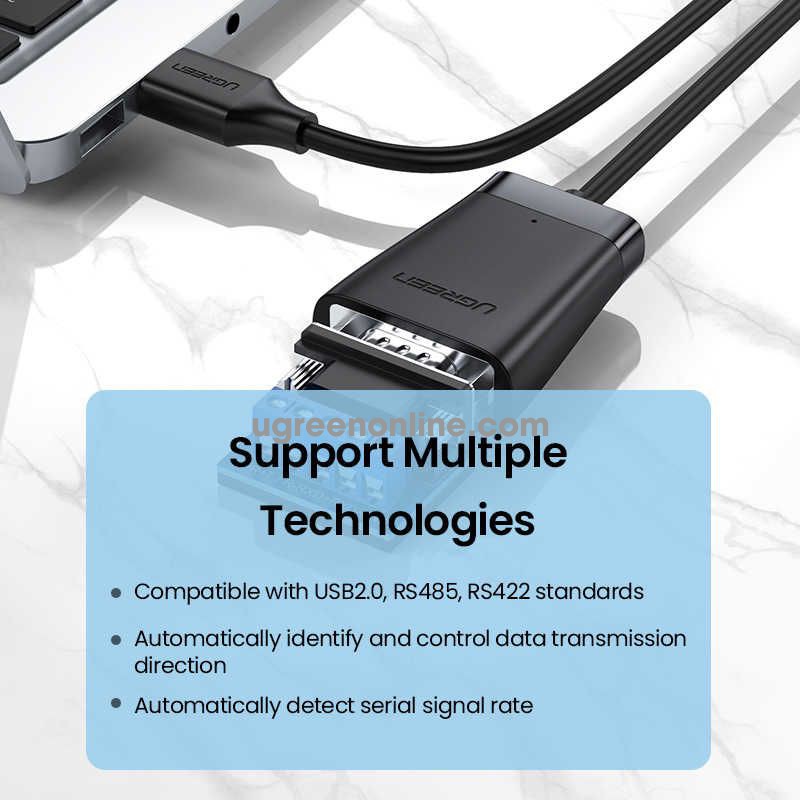

1. Ugreen 60562 is a universal USB 2.0 to RS-485/422 serial port converter. It is compatible with USB 2.0, RS-422 and RS-485 standards without the need for an external power supply. It can convert single-ended USB signal to balanced differential RS-422 or RS-485 signal, ensuring that it is compatible with all existing communication hardware and communication hardware.. 2.

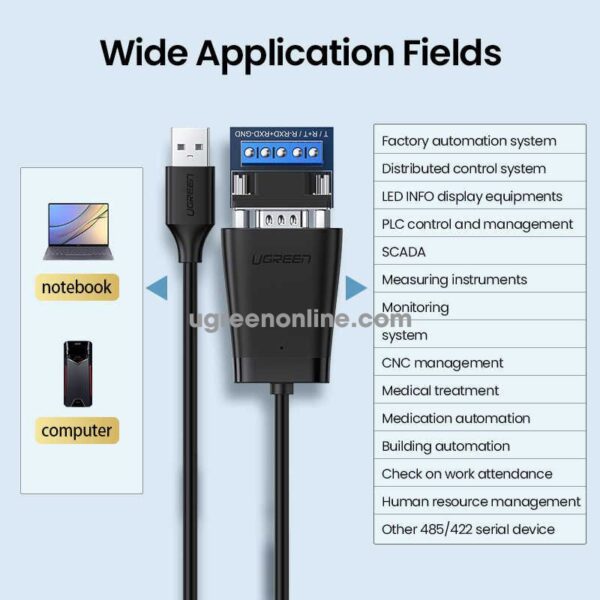

Ugreen 60562 support RS422/RS485 serial port mouse, label printer, cash register, POS machine, scanner, etc. * Balanced twisted pair length is inversely proportional to baud rate, and transmission distance can only be achieved max when the speed is below 100kb/s. In just a short distance, we can get the highest speed transmission. Generally speaking, the maximum transmission speed of 100m long twisted pair wire is only 1MB/s.

3. Ugreen 60562 with DB9 Male output with (DB9 Female to 5pin) adapter TIA / EIA-422-A Standard TIA / EIA-485-A * TVS Safety Diode * 4. Transmission Distance: Max 1200M (

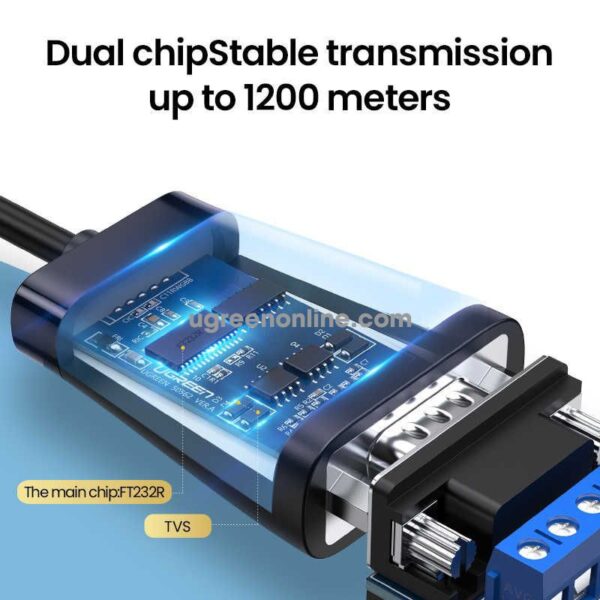

9600bps ). Chipset: FTDI-FT232R + ZT485. Built-in surge protection IC and support 600W surge protection for each line.

SPECIFICATIONS

1. Brand: Ugreen

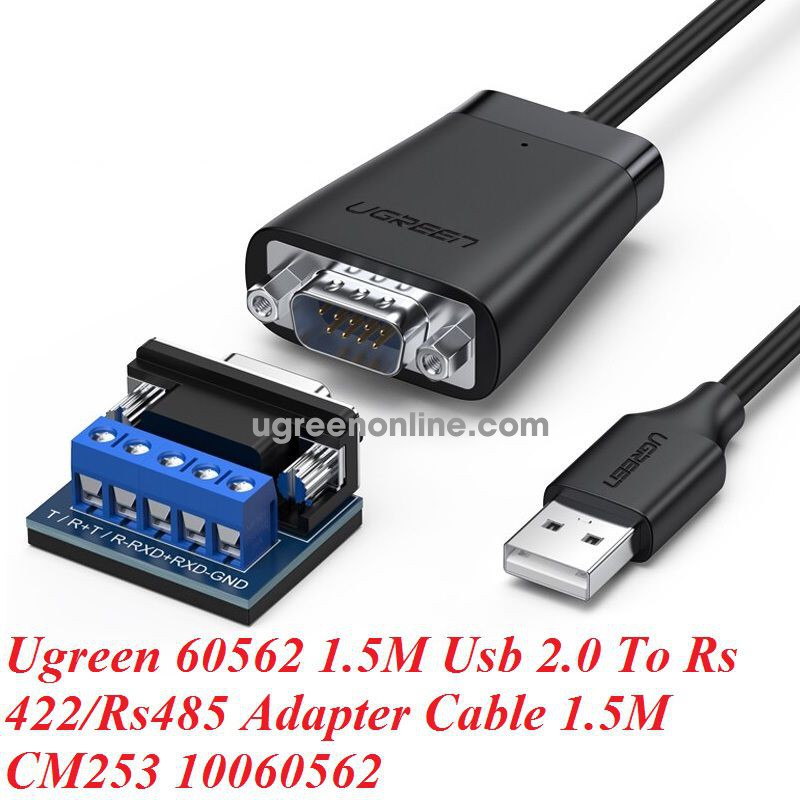

2. Product code: 60562-CM253
3. Color: Black
4. Cable length: 1.5M
5. Input: USB 2.0-A Male
6. Output: RS-422 and RS-485, DB9 Male , using with terminals
7. USB Signal : VCC DATA+ DATA+ GND
8. RS-422 Signal : TXD+ TXD- RXD+ RXD- GND
9. RS-485 Signal : T/R+ T/R- GND
10. Working Modes : Asynchronous; Point-to-Point or Point-to-Multipo
11. Load Capacity : Support Point-to-Multipoint
12. Surge protection : 600W
13. Baud Rate : 300-921600bps, automatically detect serial sign
14. Transmission Distance : 1200m(9600bps)
15. Support : Windows/Mac OS/Linux system
16. 20 x 20 x 5 cm
17. 245g
